Tesla HomeLink Compatible Garage/Gate Receiver

Download Instructions

Tesla HomeLink Compatible Garage/Gate Receiver

Vehicle Compatibility:

We have tested with this product with many different branded vehicles including Tesla, Jaguar, Porsche, Mazda and many more. We have found that if the Homelink hardware was installed by the dealer, this receiver, once connected to your motor, will make the Homelink hardware talk with your motor.

Frequency: 433.92 MHz

Capacity: 500 remotes

Channels: 2

Dimensions: 60W x 95H x 30D mm

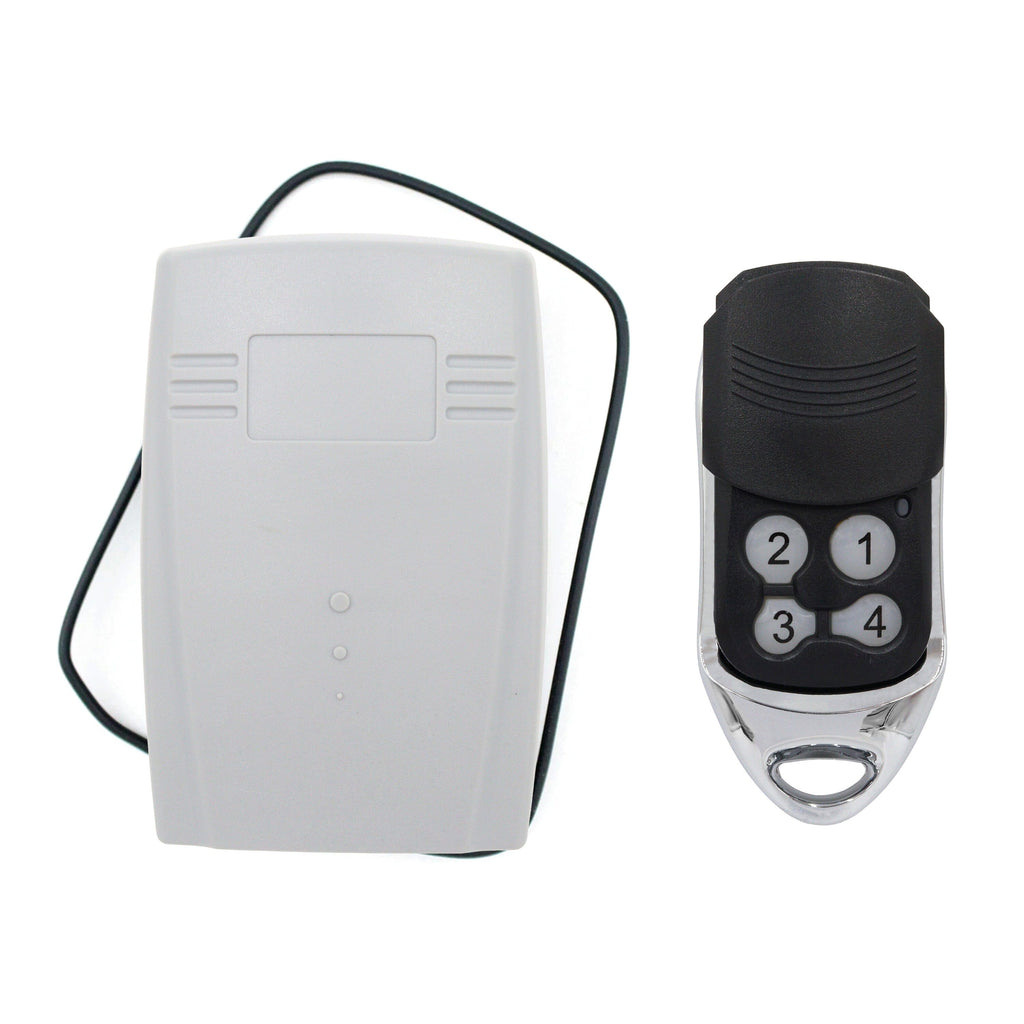

Includes:

• 1x Compatible Tesla HomeLink Receiver
• 1x Compatible Tesla Remote

Voltage: 12-24V

For compatible remotes for this receiver please Click Here

Please Note: We recommend to have this receiver installed by a professional garage installer.

Please Note: You must also purchase one Tesla Home compatible remote that is required for the coding procedure

Terminal/Wiring Guide:

V+ (receiver) > usually called 12V, 24V V+ (motor)
GND (receiver) > usually called COM, Common, GND, 0V (motor)
CH1 - Left (receiver) > usually called PB, WB, OSC (motor)
CH1 - Right (receiver) > usually called COM, Common, GND, 0V (motor)

Disclaimer:

Remote Pro distributes remote controls which are compatible with the door or garage motors and receivers produced by other manufacturers, and which are substitutes for remote controls produced by those manufacturers. Except where a product is expressly stated to be a "genuine" remote, our remote controls are not produced by, and are not authorised, endorsed or approved by these other manufacturers.
