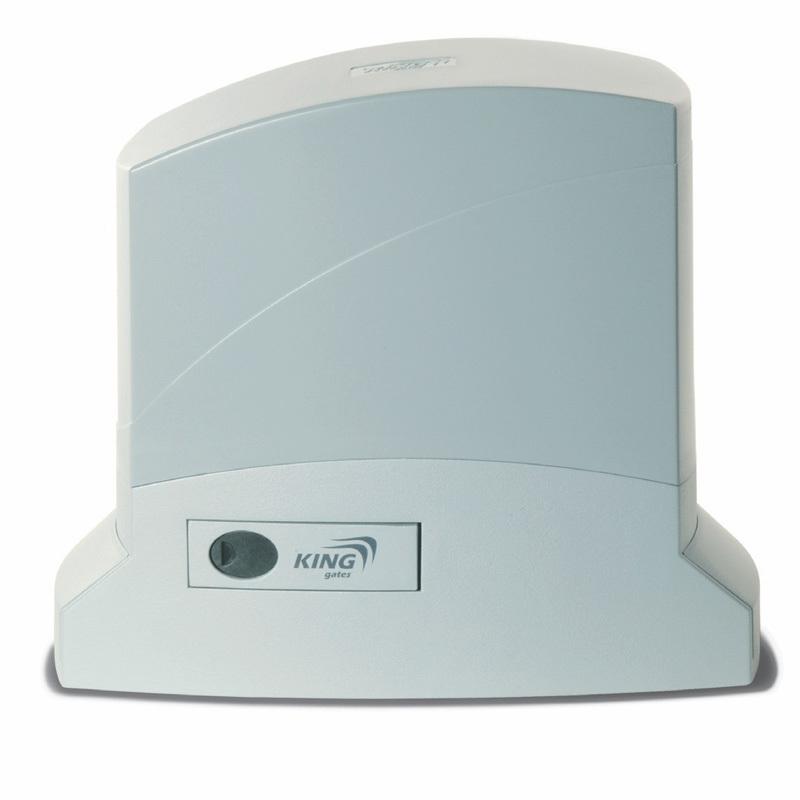

King Dynamo 1000KG Sliding Gate Motor/Opener

The Dynamos 1200, is a stylish and modern gate motor.

This motor is for intensive uses, suitable for industrial, commercial, or residential heavy gates.

The Dynamos 1200 power options:

• 240Volt, AC mains-power
• Or, remote mains-power 240-24 (when power point located away from the gate)
• Or Solar 24V

This motor will move standard gates of up to 1000Kg in weight.

Speed and force may reduce by 30% in the following cases:

• The system power by solar
• Gate is on a sloop
• Cantilever gate
• Gate is not standard

This gear-motor unit including 240V to 24V transformer. The internal motor and the electronics operates on 24V. This configuration gives better safety to the user and the installer. The low voltage system also increasing the duty cycle to be 80%.

The motor supplied with the KingGates standard 24v control unit. This unit is very easy to program due to its automatic programming function. The Dynamos 1200 boasts many innovative features including; a slow-down facility when opening and closing, obstacle detection to ensure safety, secondary safety input for additional photo cells or safety edges, and partial opening for pedestrians or other use.

The unit has additional optional items (not included with the motor)

• Digital Keypads
• Intercoms
• Infrared safety units
• Backup Battery and Charger
• Solar powered
• Remote mains power (when power point is away from the gate)
• Hazard light, and more
• Electric/ magnetic locking

This motor is 100% Italian made

This product adapted by KingGates Italy to meet the Australian and NZ specific requirements and needs.

Package Contents

• The gear motor unit
• 2X remote control units
• Standard mounting plate
• 2X Manual override keys
• 2X Stopper actuator

Technical Features

• Reliable and noiseless: mechanical parts made of metal, diecast painted aluminium base, gear motor mounted on bearings
• Quick motor release for emergency manual opening
• Maximum strength: the helical gears are built with internal involving teeth

Electronic features

• Extra safe thanks to the low-voltage connections (24V), the safety accessories and the automatic obstacle detection feature
• Auto-programming: automatically calculates the most suitable operating parameters for each gate
• PWM electronic technology (Pulse Width Modulation) to regulate the speed of the gate, and for smoother motion

Control unit with integrated receiver

• Timed and adjustable automatic closing function
• Programming of up to 180 transmitters (remote control units)
• Obstacle sensitivity adjustment
• Adjustable speed

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
