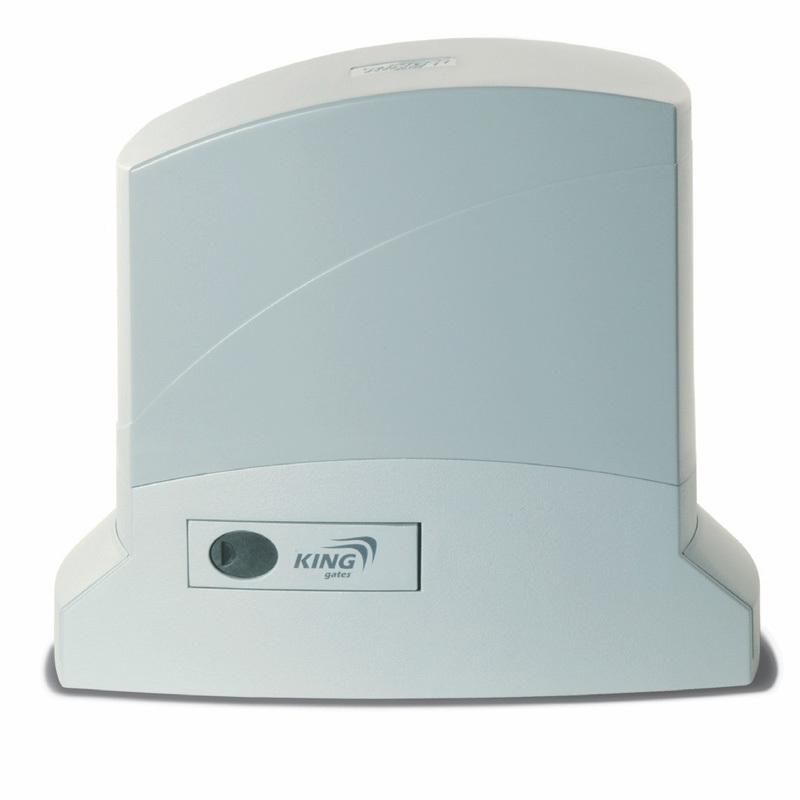

King Dynamo 400KG Sliding Gate Motor/Opener

Made in Italy, the home of gate automation, the Dynamos fast new 400 is a stylish and modern system. It is powered by a 24 Volt transformer and can move up to 400Kg in weight. The system is very easy to program due to its automatic programming function. The Dynamos 400 boasts many innovative features, including a slow-down facility on opening and closing, obstacle detection to ensure safety, secondary safety input for additional photo cells or safety edges, and has partial opening for pedestrian and other uses. The benefit of a low voltage system is the capacity for high duty cycle operation, and the option for battery backup in case of power cuts (optional battery backup kit). the Dynamo provided with two manual release keys for manual emergency opening of the gate, Raised plate 30mm for higher level installation is optional.

Note: with solar power, the max specifications of the gate €“ weight and speed- is reduced by 25% (you may choose the super solar kit to recover those top specs. This including additional battery, charger and solar panel, please contact us for this option)

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual

Remotes Included: 2

Package Contents:

• Sliding gate motor

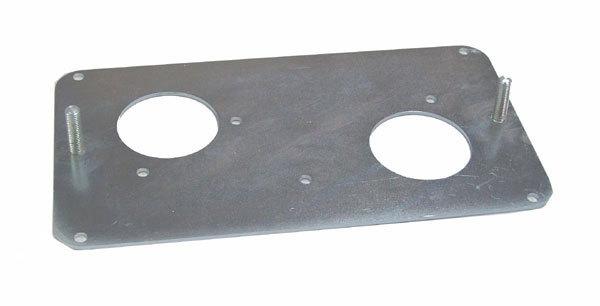

• Mounting plate
• 2X Manual override keys
• 2X Stopper actuator
• Set of bolts

Technical Features

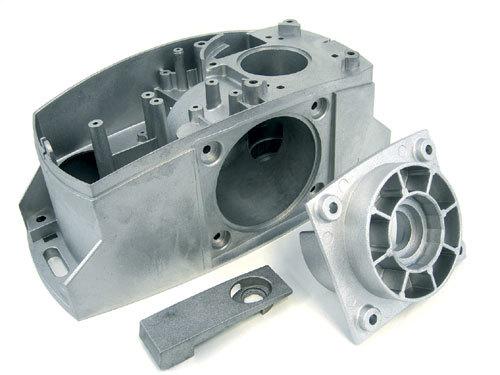

• Reliable and noiseless: mechanical parts made of metal, die-cast painted aluminium base, gear motor mounted on bearings

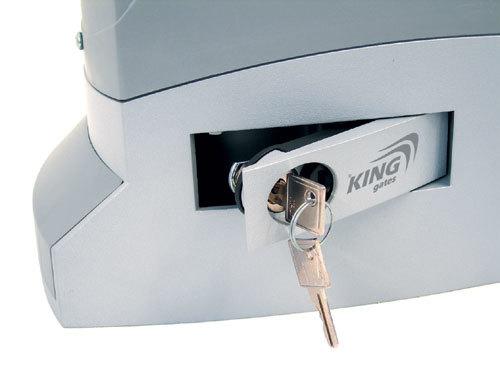

• Quick motor release for manual gate operation
• Maximum strength: the helical gears are built with internal envolvent teeth

Electronic Features

• Extra safe thanks to the low-voltage connections (24 V), the safety accessories and the automatic obstacle detection feature
• Auto-programming: automatically calculates the most suitable operating parameters for each gate
• PWM electronic technology (Power width modulation) to regulate the speed of the gate, and to obtain a fluid motion

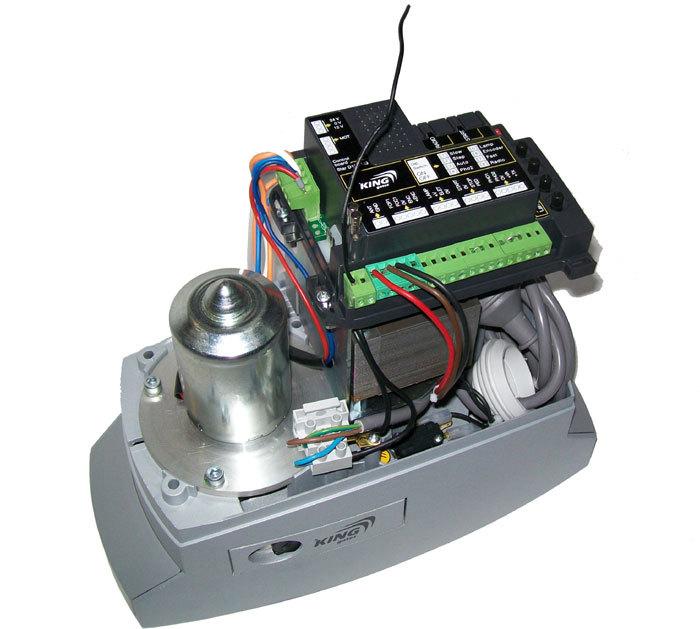

Control unit with integrated receiver

• Timed and adjustable automatic closing function
• Programming of new transmitters (up to 200)
• Pause time adjustment
• Obstacle sensitivity adjustment

TECHNICAL DATA	400 KG	600 KG
Power Supply (VAC 50Hz)	240	240
Motor Power supply (VDC)	24	24
Motor power (W)	40	70
Temp Range (C)	-20 -- +55	-20 -- +55
Operating Temp (C)	-	-
Speed (MM/ Sec)	110-220	90 - 150
Cycle of work (%)	50	80
Dimensions (mm)	235*185*274	235*185*274
Automation weight (Kg)	9	11
Gate max weight (Kg)	400	600
